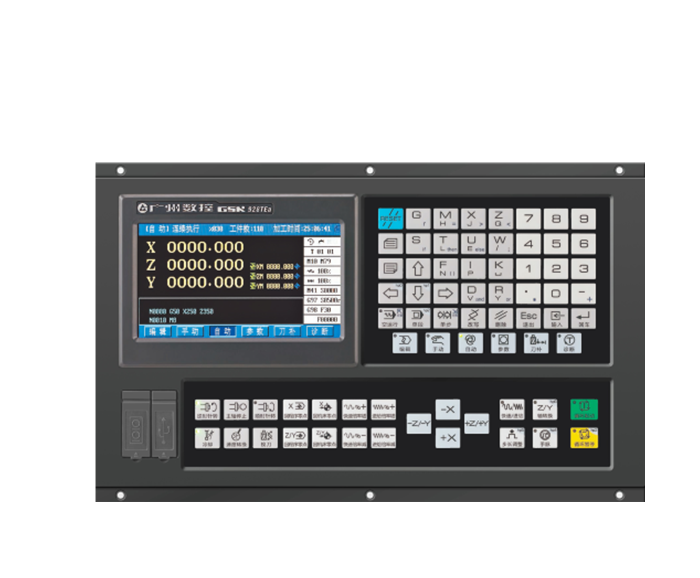

GSK 928TEa Turning CNC system adopts the 32-bit high capacityindustry CPU and large-scale programmable gate array integral circuit chip CPLDto form a controllable core and carry out the u m level precision motionalcontrol; its system function is strong; its capacity is tables and theinterface displays simple and the operation is more convenient, which can beadapted with the AC servo drive equipment (Drive unit and Servo motor) made byGSK.The processes can be performed by completing the outer circle, end-face , slot,taper,arc and thread; it owns high cost-performance as well.

It has nigh speed and high precision. The effective machiningspeed of complex surfaces is diimin,and the optimum machining speed is 4m/mn.ithas the look- ahead function with 1000 blocks, with the maximum position speedof 6om/min and the maximum feed speed of 15m/min

It supports three kinds of communication interfaces IoudingRS232,U58,and network , repairing file translwr,DNC machining,and LSB onina machining It aisa surports various kinds of fool magazines,such as carouselATC,dsc ATC,and servo ATGI S K-INK E GR series)anid absoiute encoders,realring tul-cisedloop controf,and the torque motor and molorized sinde are also optional the syslem has a 4 outpots of spirdle anaiog volage and 4 sets of PMC ases Il can be adepled to te functions of the auloalk certering gauge or automalic tool seting gauge

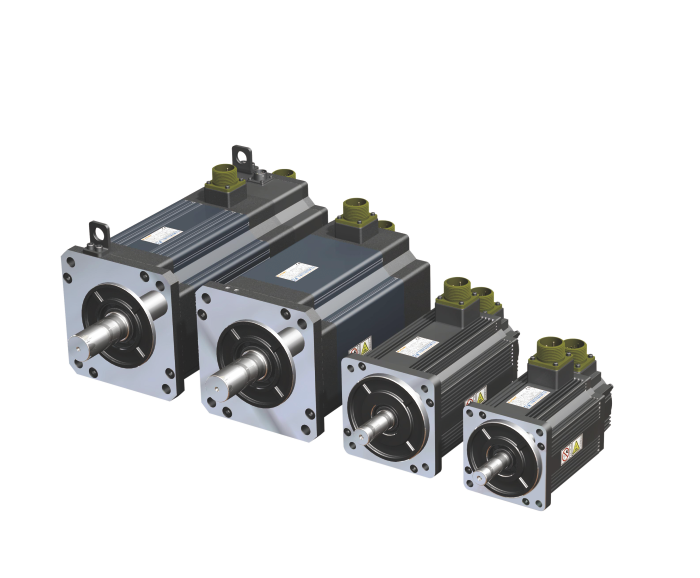

Full-closed structure,compact design,impressing appearance.

Optimized electromagnetism design ensures low noise,stable

performance and high efficiency.

High quality rare earth permanent magnet material ensure lowcelocity

performance and excelent overload capacity.

High precision encoder ensures high precision speed control and

position control.

IP65 protection level ensures reliable performance in-15C-40Ctemp

and dust oil mist environment.

High precision bearings and rotor dynamic balancing technology

ensures stable performance in max RPM range with min vibration and

low noise.

High torque-to-inertia-raitio,excelent quick responce.

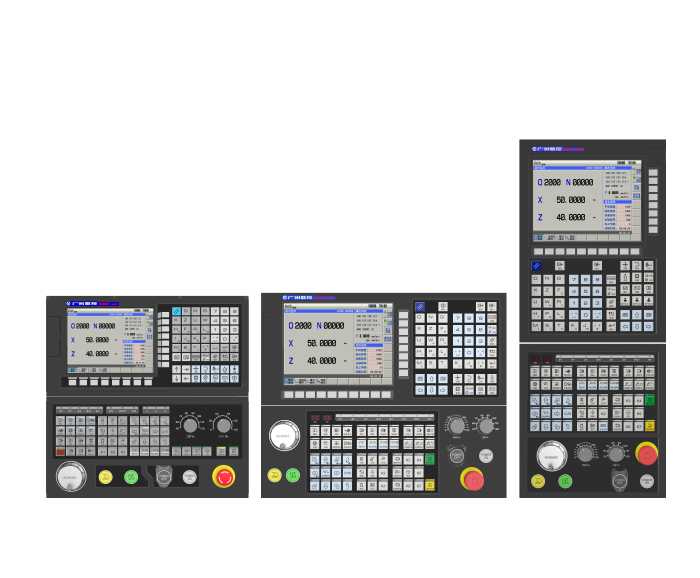

GSK 980TDi TURNING MACHINE CNC PRODUCT BRIEF

GSK 980TDi is a new member of the GSK 980TD series product,whichis developed by the original engineers who have studied the GSK 980TD,GSK

980TDa,GSK 980TDb and GSK 980TDc,etc.products,as well it is thenewest product followed with the GSK 980TDc,which GSK aims at the common

CNC Turning machine and Turning center market.

GSK 980TDi is based upon the GSK-Link industry spot BUS,which isadapted with the BUS servo drive unit and absolute encoder servo motor,

carries out the 0.1 um level position accuracy,servo parameteron-line configuration and non-block mechanical zero return.Simultaneously,invitethe

known professionals in the industry field to design the newestappearance.Additionally,the project team has been carried out a large number ofstudies in the efficiency improve, intelligence application,humanizationoperation and user secondary development,etc.

The launch of the GSK980TDi will lead another significantrevolution in the common CNC system!

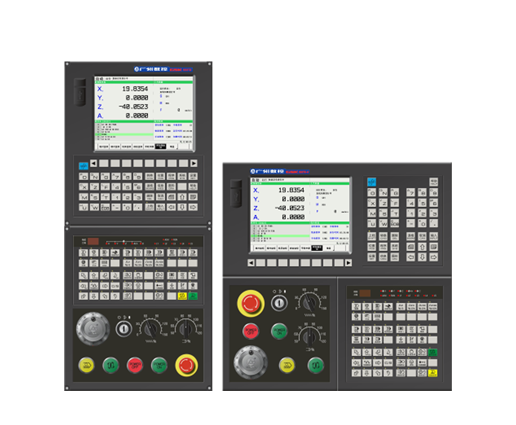

GSK 988TAturning center CNC system adopts GSK Link Industrial Ethinet bus technology, and is suitable for GR-L series servo. It support online commissioning and high-precision control of CS axis, which can meet the needs of high precision and high efficiency machining of medium and high grade turning center. GSK 988TA turning center CNC system consist of 10.4" LCD, membrane button and many other appearance structures, as shown in the following figure.
