Customer requirement

• 3-axis for system controllable axis.

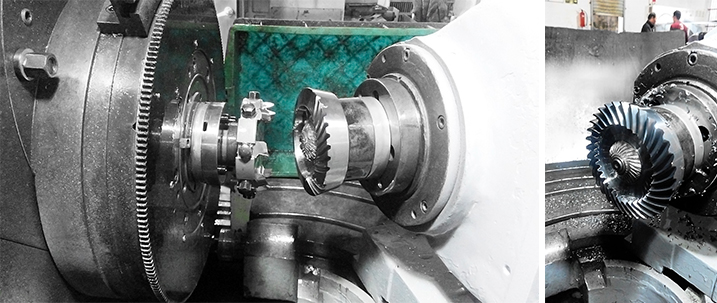

• Carry out the machining function of conical arc gear.
• Achieve the parameter input macro program of conical gear machining on the customized interface.

Troubleshooting

• Using the 218MC control, the function development can be performed before the version of V1.16.
• To add the customized interface of arc gear machine for easily to input the machining parameters.
• Add the machining function of arc gear machine that the processing program can be produced by inputting the parameter.

Application Effect

• Input the machining parameter to produce the machining program, which can be saved the time of manual edit on the system panel and shortened the efficiency time of workpiece production to improve its efficiency.
• The dedicated interface is concise and convenient of which the processing program can be automatically produced as long as the customer inputs the relevant variable.
• The grinding machining of multiple arc gear machines can be carried out for achieving the diversification of machining production.
