Customer Requirement:

• Workkpiece completes the grinding for performing the fixture once;
• To achieve the cutting grinding and multiple-vertical-grinding technology based upon the customer’s drawing;
• It owns the automatic grinding-wheel-trimming and automatic compensation functions;
• Interface input with menu-type.

Troubleshooting:

• Configure the customized figure parameter interface with users; Monitor the information, such as the spindle power and grinding state, etc.
• It uses the central frame and hydraulic tailstock to grind the slim and long workpiece.
• Make a detailed processing project and guarantee the processing quality of components.
• To carry out the compensation of automatic end-face by using the system macro program, and guarantee the consistence of workpiece.

Application Effect:

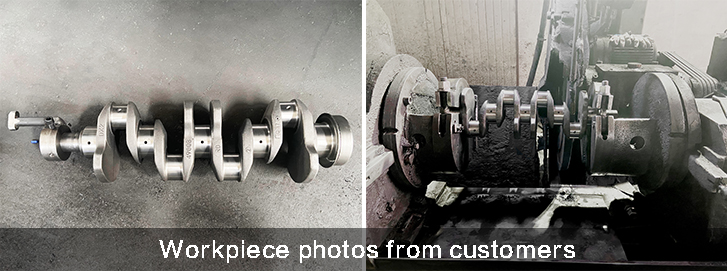

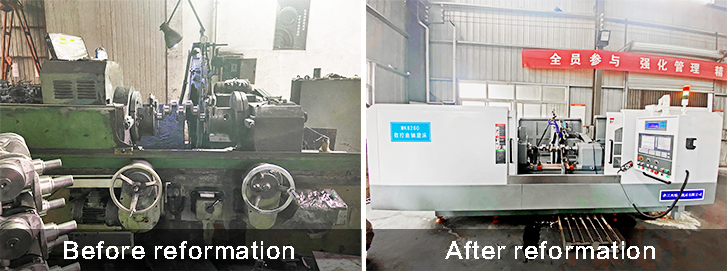

• The CNC precision position motion of the crankshaft journal grinding can be carried out and thoroughly solved the shortages, for example, the poor flexibility, low efficiency and complicated maintenance in processing of the traditional common grinding machine tool.
• It uses the 986 CNC system, which owns the all-around controllable functions; for example, program change, workpiece quality administration, machine tool state monitoring, fault self-diagnosis and abnormal alarm during the grinding tool is performed. It is more convenient of the menu-type input as well.
• Multi-procedure-machining of multi-crankshaft-journal can be performed the fixture once.
